£399.36 – £429.50 inc. VAT

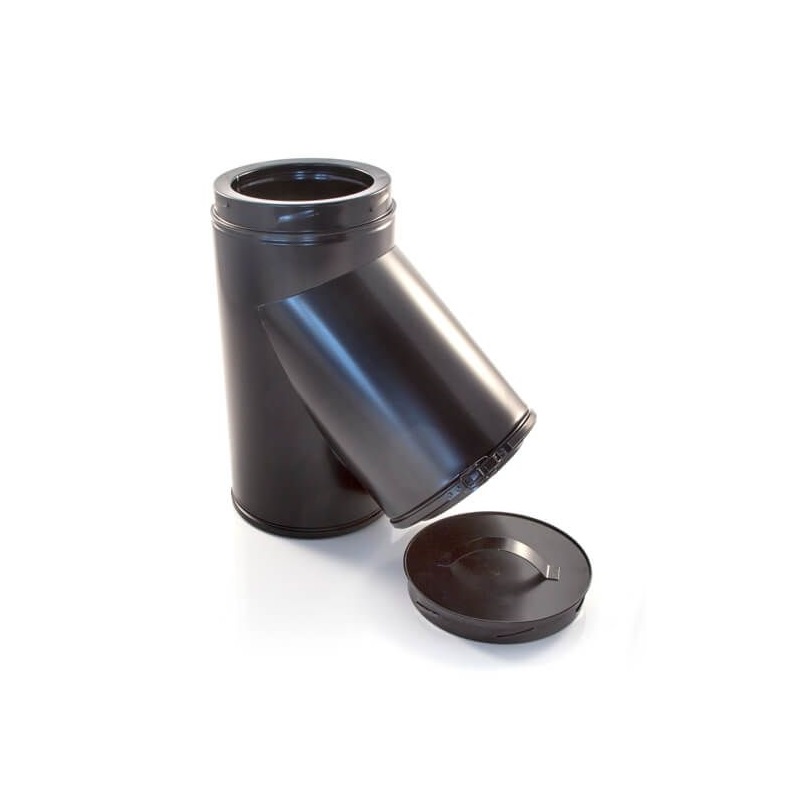

This item is used in combination with a 45 degree elbow to connect from the connecting flue pipe to the vertical chimney. It provides the least resistance to the flow of the flue gases.
An inspection Tee with tee cap can form a suitable inspection point (unless cleaning/inspection can be done through the appliance).To aid cleaning, sufficient distance should be left between changes of direction to permit the safe passage of cleaning brushes within the system. This is particularly important on solid fuel applications. It is recommended that chimneys serving solid fuel appliances be swept as frequently as necessary, but at least twice a year.
ICID Plus Twin Wall Flue, is ideal not only for traditional stoves but also for pellet stoves, biomass appliances, mini/micro CHP and even condensing boilers capable of withstanding positive pressure.
The system is designed so that the outer case is load bearing and the inner liner is free to expand independently, therefore thermal expansion is accommodated within each and every joint of the system.
| Internal Flue Diameter | 125mm (5"), 150mm (6"), 180mm (7"), 200mm (8") |
|---|
