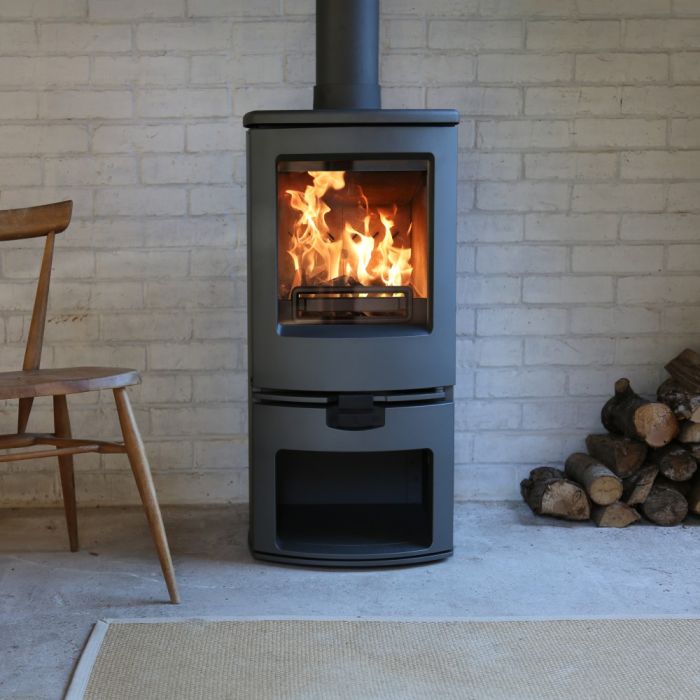

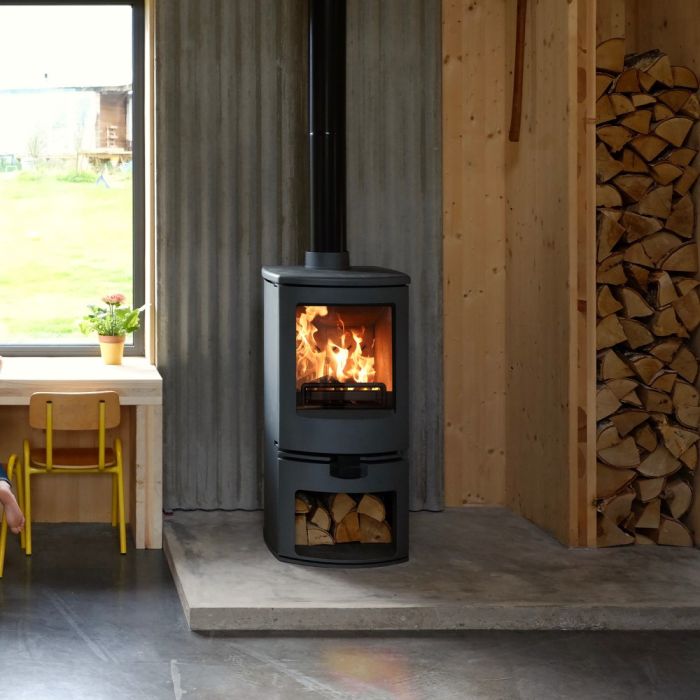

Charnwood Arc 5 with Store Stand

Charnwood Arc 5 with Store Stand

The Arc 5. A revolutionary new multi-fuel stove.
The Charnwood Arc 5 produces between 2-7kW of heat with a rated output of 5kW. Operated by one single air control the combustion system drastically reduces emissions and gives a superior flame pattern. The Arc’s pared down simplicity makes for a thoroughly stylish option for modern urban settings as well as more traditional homes.

---

Charnwood Arc 5 Features

• SIA Eco Design Ready
• Cleanburn airwash technology
• Quattroflow air management system
• Converting grate – Drop down throat plate enabling the chimney to be swept through the stove
• DEFRA exempt for burning wood in smoke control areas

---

Charnwood Arc 5 Customisation Options

• Vertical rear flue adaptor
• Rear heatshield
• Optional drawer
• Store stand
• Choice of eight colours

---

Energy output

• Output – 5kW (range 2-7kW)
• Net efficiency – 81% Wood, 82% Solid Fuel

---

Size and weight

• Flue outlet : Top or Rear 125mm (5″) diameter
• Max log length : 290mm (11.5”)
• Minimum distance to combustibles : Side: 300mm Rear: 200mm – With insulated flue & heatshield : Side: 270mm Rear: 80mm
• Weight (low stand) : 130kg
• Weight (store stand) : 150kg

---
