Charnwood Bay BX

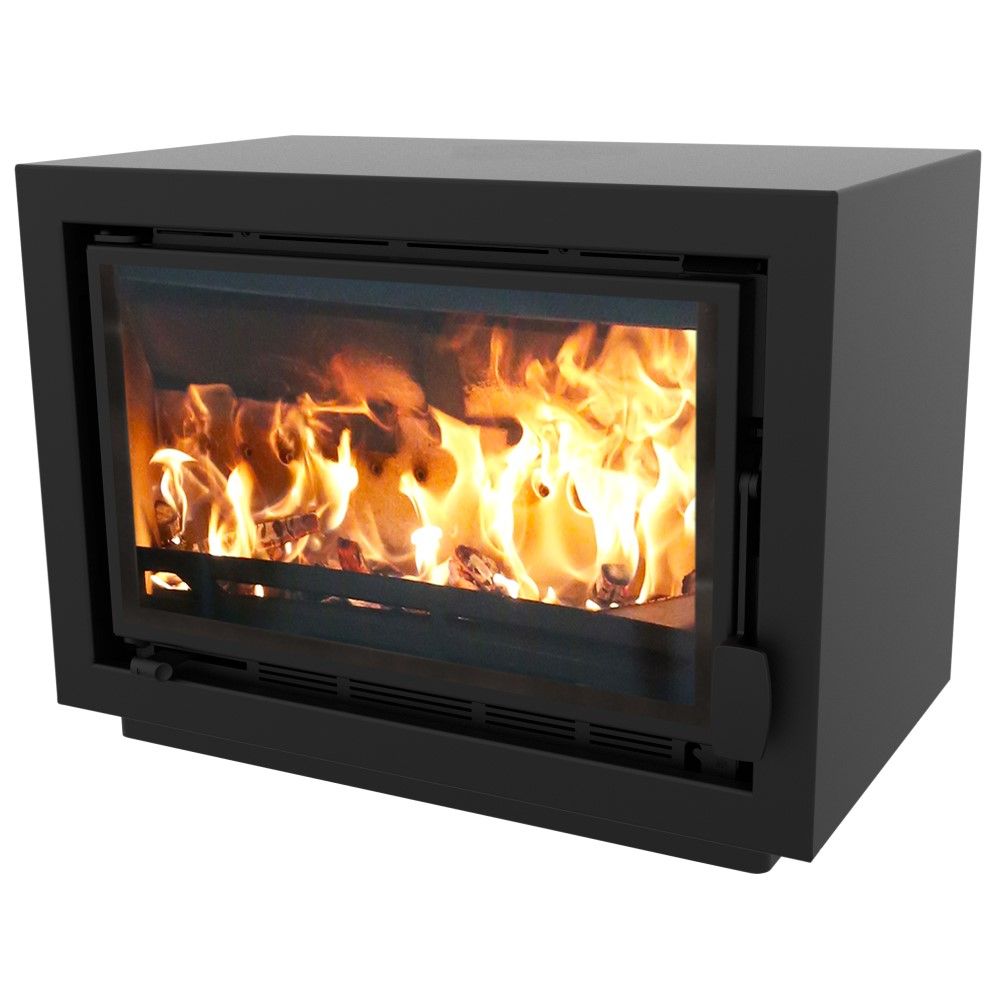

Charnwood Bay BX Freestanding Stove

The Bay BX is the latest addition to the Bay range.
The firebox and frame of the stove is the same as the Bay VL but features an outer casing transforming the appliance into a freestanding stove. The Bay BX can be installed directly onto a hearth or we offer a choice of three base options to raise the stove up: bench stand, centre stand or store stand. Both the stove and base options are available in eight colours.

Charnwood Bay BX Features

• SIA Eco Design Ready
• Cleanburn Airwash Technology
• Drop down throat plate enabling the chimney to be swept through the stove
• DEFRA exempt for burning wood in smoke control areas

Charnwood Bay BX Customisation Options

• Choice of eight colours

Energy output

• Output – 5kW (range 2-7kW)
• Net efficiency – 81% Wood

Size and weight

• Flue outlet : Top or Rear 150mm (6″) diameter
• Max log length : 463mm (18”)
• Minimum distance to combustibles : Side: 150mm Rear: 270mm With insulated flue: Side: 100mm Rear: 130mm
• Weight : 103kg
