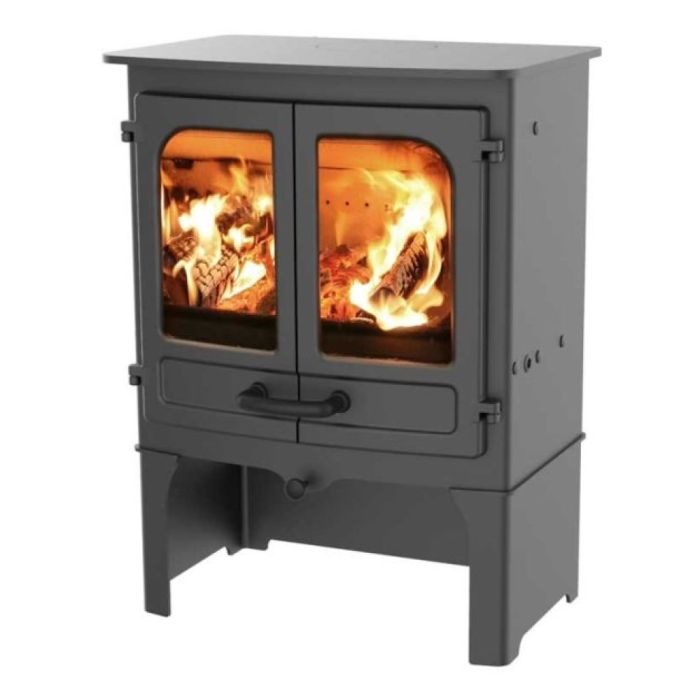

Charnwood Island I with Store Stand

Charnwood Island I with Store Stand

The All New Island I is the smallest stove in the Island collection.
Its uncomplicated looks and gentle curves ensure it sits well in any situation; be it modern or traditional. Delivering an output of 2-7kW of heat it can take a log length of up to 370mm (14.5”). With a rated output of 5kW the All New Island I, in certain situations, can be installed without the need for external air. This stove meets Clean Air Act requirements and boasts an efficiency of over 85% and an extremely low smoke particle level of 9mg/m3 (the Ecodesign limit is 40mg/m3).

Charnwood Island I Features

• SIA Eco Design Ready model available
• Cleanburn Airwash Technology
• Quattroflow Air Management System
• Cool-to-touch handle for safe and easy reloading
• Drop down throat plate
• Meets the UK building requirements for installation with a 12mm non-combustible hearth

---

Charnwood Island I Customisation Options

• Flue boiler
• Vertical rear flue adaptor
• Choice of eight colours

---

Energy output

• Output – 5kW (range 2 – 7kW)
• Net efficiency – 85% Wood, 78.8% Solid Fuel

---

Size and weight

• Flue outlet : Top or Rear 125mm (5″) diameter
• Max log length : 411mm (16”)
• Minimum distance to combustibles : Side: 500mm Rear: 350mm – With panels/ heatshield : Side: 500mm Rear: 100mm
• Weight (low leg) : 109kg
• Weight (high leg) : 110kg
• Weight (store stand) : 117kg

---
